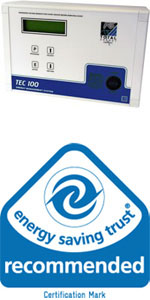

TEC 100

100The TEC 100 is a digital, intelligent boiler management system (fuel saver) with built in programmer, designed to control single, small to medium sized commercial boilers. It is compatible with most makes and types of boilers using natural gas, oil or LPG. The system combines microchip technology with proven techniques to reduce energy consumption and CO2 emissions. Our Variable Thermal Response program measures system water temperature through electronic sensors on the flow and return pipes and accurately varies the system temperature to meet the demand imposed. Additionally the TEC 100 performs optimisation, weather compensation, variable thermal response, flow and return system temperature control, night temperature, hot water priority, two stage frost protection, digital programmer and optional security switch to eliminate unauthorised adjustments. Safeguards against back end condensation are also catered for, providing maximum energy savings whilst maintaining comfort conditions. The built in 7-day programmer provides up to two on/off periods per 24 hours with the ability to program variable on/off times for each day of the week.



TEC 100 Specification

Mains Supply           240V AC 50Hz 1Ph
Consumption           6VA
Switching Mode           Volt Free
Switching Current           8 Amp
Boiler Suitability           Single, small to medium sized commercial boiler
No. of Channels           1 Boiler and 1 Plant
Standard Equipment           Main Controller
          Flow Sensor
          Return Sensor
          External Sensor
User Adjustments           Extensive Programming Menu, Active/Byapss Switch
Viewing Indications           Current Mode, Date, Time
          System Temperatures
Indicator Type           LCD Display
Physical Size           220mm W x 145mm H x 80mm D
