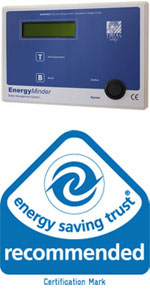

Energy Minder

minderThe Energy Minder is an intelligent central heating boiler management system (fuel saver), compatible with most small domestic boilers including combis, condensing and back boilers using natural gas, oil or LPG. In common with all TEC intelligent controls the system uses the principle of Variable Thermal Response (VTR) to achieve it’s energy savings. It has two electronic sensors which are fitted to the FLOW and RETURN pipes of the central heating system. Information from these sensors is used to accurately vary the system temperature according to the demand imposed. This significantly reduces the fuel wastage caused through temperature overshoot, heat saturation of the heat exchanger, flue losses and unnecessary boiler cycling, whilst improving internal comfort levels and reducing CO2 emissions. The Energy Minder is also available with an optional weather compensation program (only suitable for heating only or combi boilers).


Energy Minder Specification

Mains Supply          240V AC 50Hz 1Ph
Consumption          3VA
Switching Mode          Volt Free
Switching Current          5 Amp
Boiler Suitability          Single small domestic boiler
Standard Equipment          Main Controller
         Flow Sensor
         Return Sensor
         Mains Harness
User Adjustments          Boiler Temperature
         Active/Bypass Switch
Viewing Indications          Current Mode
         Systems Temperatures
Indicator Type          LCD Display and Boost LED
Physical Size          177mm W x 120mm H x 37mm D
